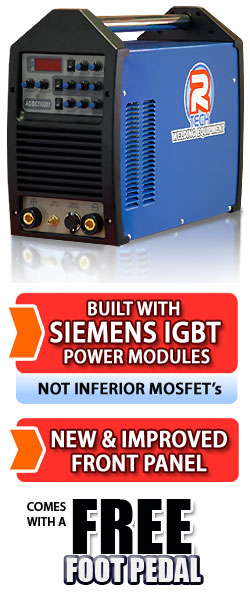

TIG Welder 240V AC/DC 200Amp

TIG_WELDER_200

Siemans

200amp AC TIG Output @ 60% duty cycle 20-200amps
200amp DC TIG Output @ 60% duty cycle 5-200amps
Massive 60% industrial TIG duty cycle at 200Amps
Massive 100% industrial TIG duty cycle at 160Amps
160amp MMA output @ 35% duty cycle 5-160amps
240V input inverter TIG welder & MMA (18A 4.3KVA)
Generator Friendly - Generator must be minimum of 6.5KVA and fitted with AVR (auto voltage regulation)
AC balance control:Adjustable for cleaning and penetration
AC Squarewave Frequency control 50 - 250 Hz:Control for narrowing the arc width, giving pin-point accuracy and increasing travel speed along the weld
Suitable for welding material up to 6-7mm thickness
Patented HF Micro-start:Instant Arc at the press of a button - get a clean start every time
Slope up 0-5 Seconds:Gradual increase in power at the start of the weld - improves overall finishing
Slope down 0-5 Seconds:Gradual decrease in power at the end of the weld - improves overall finishing
Gas post flow 1-25 Seconds
Pulse current range 5A-200A
Pulse width range 0.1-0.9 seconds
Pulse frequency range 0.5-25Hz
2T/4T Trigger Operation (trigger latching)
Industrial quality metal chassis
L.E.D amperage display (preset & actual)
Remote foot pedal option
Cooling fan with thermostatic protection
MMA arc welding hot start
240v Auxiliary output for water cooler etc
Package Includes, R-Tech Tig201 AC/DC Tig Welder,4M WP26 Air Cooled Tig Torch, Earth Lead, MMA Lead, Gas Hose, Mains Cable, Argon Regulator, Owners Manual, Torch Consumables Kit including Tungsten's
2 Year Parts & Labour Warranty
Net weight 25KG Dimensions (mm) 515x220x395
Show me the Welding Trolley
See the optional Remote Foot Pedal
Download printable TIG Welder Spec Sheet
View this TIG Welder Owners Manual
Information on the component parts of the torch
