CNC_PLASMA

 C plasa

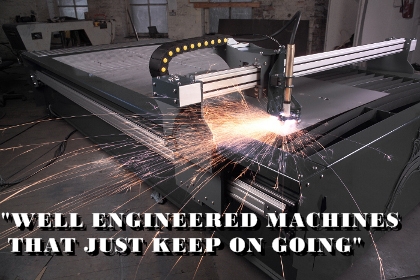

 CNC_Bed

Configured to your requirements

Our standard cutter has a

3mx1.5m bed. Whilst for your

particular needs different

confirmations of bed size may

be required the underlying

design is beautifully scalable

and so the same high

standards apply to every

model in the range

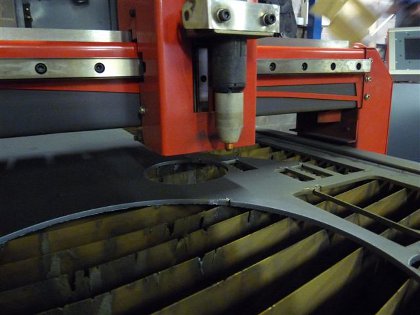

 CNC_Plasma

Applications

Most duct work and sheet

metals up to 25mm e.g.

Signage, canopies, cabinets,

stoves, fencing, gates,

brackets, HVAC installations.

Will also cut any solid

electro conductive metal e.g.

aluminium, copper & zinc

up to 31mm





Simple to Install

Systems are available in kit form for ease of shipping and

physical location within your works. The combination of a fully

integrated design, high tolerance engineering and the highest

quality materials makes configuration and commissioning

accurate and fast.

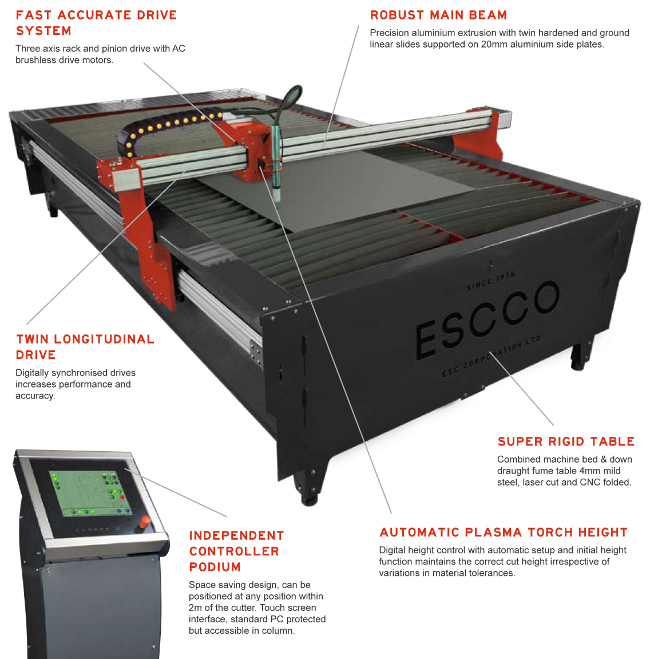

Superior Materials

Aluminium is a premium material now used to offer the

advantages of light- weight, strength, resilience and dynamic

performance specified for performance in all areas of industry

and technology. Now with our new CNC Plasma range these

same advantages are applied to plasma cutting systems.

This cutter is certainly not only one of the lightest but also we

reckon the most robust and accurate in its class.



Simple to Operate

We don’t intend to make our profits from extensive training

which is why out operation interface is beautifully intuitive.

You can view a software demonstration.

We think you’ll then understand why we can generally have

the machine delivered in the morning, installed and after initial

training you could be cutting standard items in the afternoon.

We then offer a further training session (generally a week

later) to allow you to really expand your capabilities.



Standard PC terminal

We also have designed the system to work with any standard

PC terminal. Saving you the cost and aggravation of obtaining

a specially configured unit should any post (3 year) warranty

problems occur, simply visit your nearest PC reseller.



Simple to Maintain

We have always prided ourselves on our personal customer

service. To make our life easier we have made yours simpler

too, corrective maintenance is simple, systematic and if any

problems should occur the person at the other end of the

phone is one of our design development team and knows the

machine intimately.



 CNC_PLasma





 CNC_PLASMA

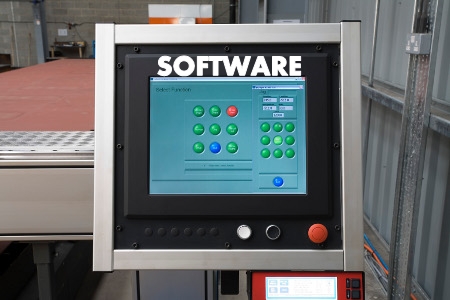

The software for the CNC machines, was designed by the CEO of TechServ. The software is very easy to use and operates with a touch screen.

The software is installed on more than 650 units worlwide.

Most DXF files can be imported into the machine, either Autocad or similar, we prefer draftsight as it is free, you can download a copy from www.draftsight.com . DXF files have to be clean with no gaps or overlaps.
We bundle sheetcam with the machines as this allows the user to import DXF files, add lead in/out lines and cutter compensation, also gives a bit of feedback to the operator, the resulting file can then be sent to the machine. Files can be loaded via a network cable, wireless network or USB memory stick. You can download an evaluation version of this software at www.sheetcam.com.



 REDCO

 GREYCO

 GP2000

 HS2000

 HS4000

 GP5000

WATER JET

 Plasma

 Plasma

 Plasma Gas  Plasma  Plasma Gas  Plasma Gas  Water Jet
 1.2m x 1.2m
 to
 2.4m x 1.2m
 1.5m x 3m  1.5m x 3m to
 3m x 10m
 1.5m x 3m to
 2m x 4m
 3m x 6m to
 5m x 30m
 3m x 6m to
 5m x 30m
 1m x 1m to
 4m x 2m
 Plasma 60 up to 21mm thick  Plasma 100 up to 31mm thick  Plasma 100 up to 31mm thick Hi Precision
 Plasma up to 35mm thick
 Hi Precision Plasma 400 amp up to 50mm thick. Gas upto 100mm thick  Gas upto 300mm thick. Plasma 400 up to 50mm thick  Waterjet cutting up to 100mm thick
 Light
 fabrication
 jobbing shop, schools, Colleges and Varsities
 Sheet
 Metalwork
 HVAC, general
 fabs
 General Fabs,
 Heavy Fabs
 Precision
 Fabs,
 HVAC, Heavy
 Fabs
 Precision
 Fabs,
 General &
 Heavy Fabs
 Heavvy Duty
 Fabs,
 fabricated
 beams
 Precision pure
 water and
 abrasive
 cutting of all
 materials
 20m/min
 transverse
 speed
 17m/min
 transverse
 speed
 12m/min
 transverse
 speed
 12m/min
 transverse
 speed
 12m/min
 transverse
 speed
 12m/min
 transverse
 speed
 16m/min
 transverse
 speed
 1 plasma
 head max
 1 plasma
 head max
 1 plasma
 head 4 gas
 heads
 1 plasma
 head
 3 plasma head
 8 gas heads
 3 plasma head
 8 gas heads
 Up to 4
 abrasive
 heads










 CNC Plasma Cutter  CNC_Plasma_Cutter  CNC_Plasma
 cnc_plasma

CNC Plasma





 CNC Plasma Cutters from R207,000

 For further information, call us on +27 11 784 0171 or email: sales@weld-tech.co.za

OTHER CNC CUTTING MACHINES

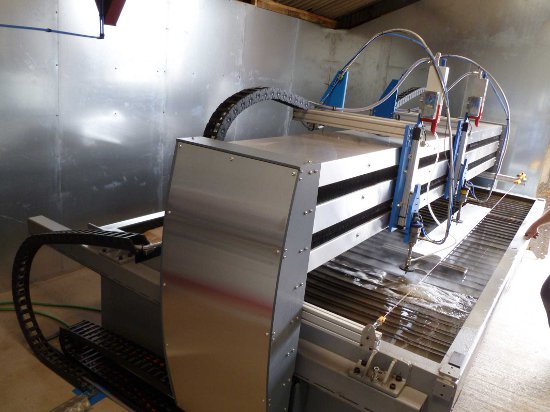

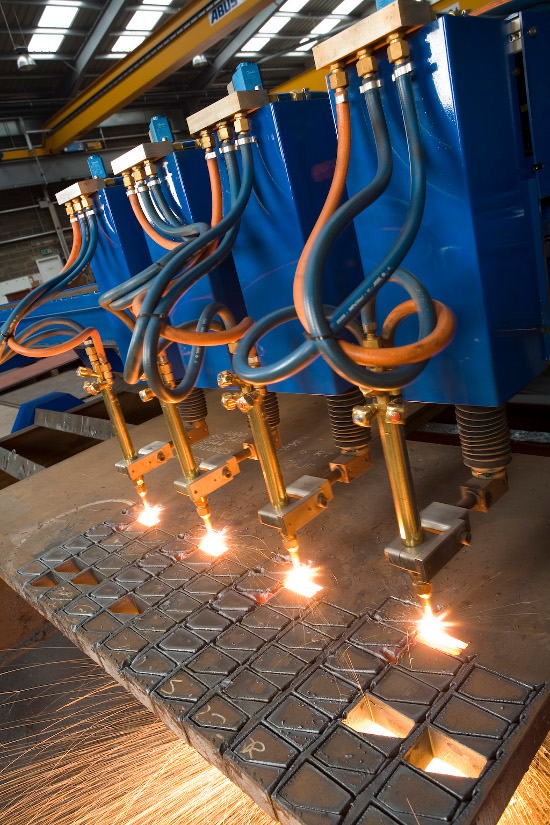

Besides Plasma CNC Machines, we also supply Gas and Waterjet cutters.



CNC Machine

CNC Cutter



CNC waterjet

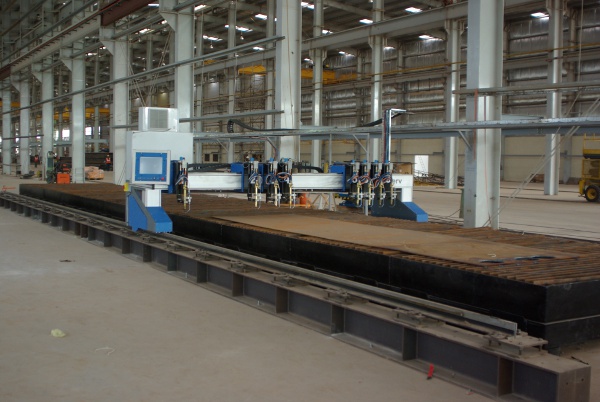

Large_CNC Machine
