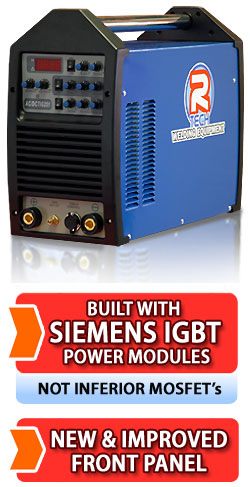

TIG Welder 220V AC/DC 200Amp
|
|
- 200amp AC TIG Output @ 60% duty cycle 20-200amps
- 200amp DC TIG Output @ 60% duty cycle 5-200amps
- Massive 60% industrial TIG duty cycle at
200Amps
- Massive 100% industrial TIG duty cycle at
160Amps
- 160amp MMA output @ 35% duty cycle 5-160amps
- 240V input inverter TIG welder & MMA (18A
4.3KVA)
- Generator Friendly - Generator must be minimum of 6.5KVA and
fitted with AVR (auto voltage regulation)
- AC balance control:Adjustable for cleaning and penetration
- AC Squarewave Frequency control 50 - 250
Hz:Control for narrowing the arc width, giving pin-point accuracy and
increasing travel speed along the weld
- Suitable for welding material up to 6-7mm
thickness
- Patented HF Micro-start:Instant Arc at the press of a button - get a clean start every
time
- Slope up 0-5 Seconds:Gradual increase in power at the start of the weld - improves overall
finishing
- Slope down 0-5 Seconds:Gradual decrease in power at the end of the weld - improves overall
finishing
- Gas post flow 1-25 Seconds
- Pulse current range 5A-200A
- Pulse width range 0.1-0.9 seconds
- Pulse frequency range 0.5-25Hz
- 2T/4T Trigger Operation (trigger latching)
- Industrial quality metal chassis
- L.E.D amperage display (preset & actual)
- Remote foot pedal option
- Cooling fan with thermostatic protection
- MMA arc welding hot start
- 240v Auxiliary output for water cooler etc
- Package Includes, R-Tech Tig201 AC/DC Tig Welder,4M WP26 Air
Cooled Tig Torch, Earth Lead, MMA Lead, Gas Hose, Mains Cable, Argon Regulator, Owners Manual,
Torch Consumables Kit including Tungsten's
- 2 Year Parts & Labour Warranty
- Net weight 25KG Dimensions (mm) 515x220x395
- Show me the Welding Trolley
- See the optional Remote Foot Pedal
- Download printable TIG Welder Spec Sheet
- View this TIG Welder Owners Manual
- Information on the component parts of the
torch
|
