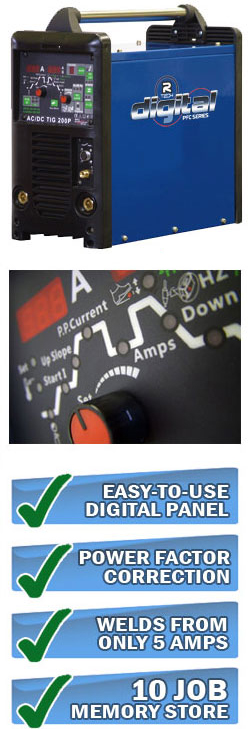

TIG Welder 220V AC/DC 210A DIGITAL PANEL
 |
- Digital control panel - designed for easy use
- Control all parameters from a single button
- Easy start and finish set-up
- Store up to 10 jobs in memory
- Power Factor Correction - What's this?Gives lower running costs, it's more energy efficient, cleans
noisy power supplies & is 100% generator friendly
- 3 AC Waveforms
- Square Wave: fast cooling weld pool, deep penetration and fast travel speed
- Sine Wave: Low arc noise, for a more traditional arc
- Triangular Wave: designed for thin alloys, reduces heat input
- Electronic HF - improved arc starting and less interference - What's
this?Ensures an ultra-clean start to your
welds
- Lift start option
- Amperage Range: DC 5 to 210 Amps (AC 10 to 210 Amps)
- Input voltage: 240v - 16Amps
- 35% Duty Cycle @ 210A (TIG)
- 100% Duty Cycle @ 120A at (TIG)
- 35% Duty Cycle @ 160A (MMA)
- 100% Duty Cycle @ 100A at (MMA)
- Installed Power: 6KVA
- AC Frequency: 15-200Hz
- Pulse width: 0.1-1.0s
- Pulse Frequency AC: 0.5-10Hz
- Pulse Frequency DC: 0.5-500Hz
- Insulation Class: IP23
- VRD Voltage Reduction in MMA - reduces OCV in standby for increased user safety
- Full 4-way functioning with control of pre/post flow gas, initial/final amps, slope
up/down
- Generator Friendly - Recommended minimum of 7KVA
- Dual LED displays for preset and actual amperage
- MMA VRD (Voltage Reduction) - Lowers OCV in MMA mode for increased user safety
- MMA Anti-Stick & Hot Start technology
- 3 Year Warranty
- See the optional Remote foot
pedal
- Download the printable Tig Welder Owners Manual
- See the printable Tig Welder Spec Sheet
|
