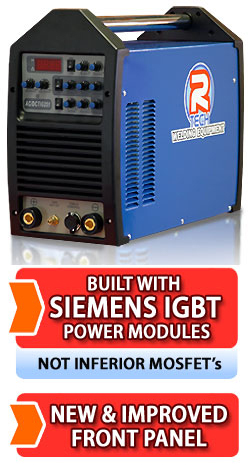

TIG Welder 220V AC/DC - A Massive 250 Amps
|
|
TIG Welder 240V AC/DC - Massive 250 Amps
- 250amp AC TIG Output @ 60% duty cycle 20-250amps
- 250amp DC TIG Output @ 60% duty cycle 10-250amps
- Massive 60% industrial TIG duty cycle at 250Amps
- Massive 100% industrial TIG duty cycle at 200Amps
- 200 amp MMA output @ 60% duty cycle 10-200amps
- 240V input inverter TIG welder & MMA (32A 7.7KVA)
- Generator Friendly - Generator must be minimum of 10KVA and fitted with AVR (auto voltage
regulation)
- AC balance control:Adjustable
for cleaning and penetration
- AC Squarewave Frequency control 50 - 250 Hz:Control for narrowing the arc width, giving pin-point
accuracy and increasing travel speed along the weld
- Suitable for welding material up to 8-9mm thickness
- Patented HF Micro-start:Instant Arc at the press of a button - get a clean start every
time
- Slope up 0-5 Seconds:Gradual
increase in power at the start of the weld - improves overall
finishing
- Slope down 0-5 Seconds:Gradual
decrease in power at the end of the weld - improves overall
finishing
- Gas post flow 1-25 Seconds
- Pulse current range 5A-250A
- Pulse width range 0.1-0.9 seconds
- Pulse frequency range 0.5-25Hz
- 2T/4T Trigger Operation (trigger latching)
- Industrial quality metal chassis
- L.E.D amperage display (preset & actual)
- Remote foot pedal option
- Cooling fan with thermostatic protection
- MMA arc welding hot start
- 240v Auxiliary output for water cooler etc
- Package Includes, R-Tech Tig251 AC/DC Tig Welder,4M WP26 Air Cooled Tig Torch, Earth Lead,
MMA Lead, Gas Hose, Mains Cable, Argon Regulator, Owners Manual, Torch Consumables Kit
including Tungsten's
- 2 Year Parts & Labour Warranty
- Net weight 32KG Dimensions (mm) 515x220x395
- Download printable TIG Weld Spec Sheet
- Show me the Welding Trolley
- See the optional Remote Foot Pedal
- Information on the component parts of the torch
|
